Description
By using inbuilt device with synchronization, power matching and paralleling functions, the controller can be synchronized with the mains, uninterruptedly returning when reaching the peak, Can synchronise up to 32 generator sets as a group.

Features
● Multiple languages display
● Root mean square value voltage measurement
● Optional power measurement device
● Optional communication ability function, automatic synchronization indication function
● Inbuilt or expansion relay outputs
● Intelligent and humanized parallel connection,easy to operate
● Event log records
● Engine and alternator monitoring and protection

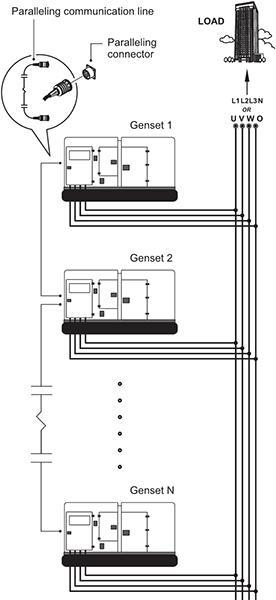

Each genset is equipped with two paralleling communication connectors, and the user can parallel two or more gensets by using the paralleling communication line.

1. Load Connecting
1) Use appropriate cables to connect the corresponding power terminals (L1,L2,L3,LN) on gensets to the busbar.
2) Connect the busbar to the load.

2. Paralleling Communication Connecting
1) Use the paralleling communication line to connect the two paralleling connectors on
genset 1 and genset 2.
2) In the same way connect paralleling connectors between every two gensets form genset 2 to last.
