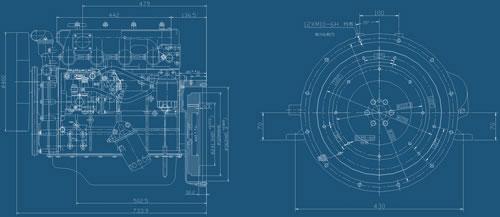

XinChai Series Diesel Engine, N485
N485 Diesel Engine for Generating Sets
The NC485BD engine, a kind of XinChai series diesel engine, is specially designed for generating sets based on the working mode and operation conditions of generating sets. It is ideal power for the 10-15KW generating sets.
Main Features of XinChai Series Diesel Engine, N485
1. Direct injection and excellent start performance
2. Low fuel consumption, low noise, stable and reliable performance
3. Compact structure, standard SAE coupling, easy installation, sub-unit painting, elegant design
4. Necessary technical support from our professional team
5. High grade after-sales service and sufficient supply of spare parts for our customers
| Model | NC485BD | |
| Cylinder number-cylinder bore×stroke (mm) | 4-85×100 | |
| Type | Direct injection, water cooled, four-stroke | |
| Displacement(L) | 2.27 | |
| Compression ratio | 18:1 | |
| Rated output/ Rated speed(kw/r/min) | 17/1500 | 20/1800 |
| Maximum specific fuel consumption at full load(g/kw﹒h) | ≤240 | |
| Minimum steady idling speed(r/min) | ≤950 | |
| Maximum smoke at full load | ≤2.0 | |
| Exhaust temperature(℃) | ≤550 | |
| Net weight | ≤220 | |
| Machine oil consumption(g/kW﹒h) | ≤1.63 | |
A major XinChai series diesel engine supplier in China, Guangdong RISE Power Equipment Inc. has received the ISO9001:2000 certification due to its operation in rigid compliance with international standards. In addition to the XinChai series diesel engine, we also provide Perkins series diesel engine, SDEC diesel engine, SC (CAT) series diesel engine, and a range of generator sets, such as Lister-Petter generator set, VOLVO generator set, to name a few. With high quality and competitive prices, our products are highly praised by customers throughout the world. Located in Guangzhou, our company has access to convenient air, sea and land transportation, which can largely save shipping charges of our customers. For more information about our products, please go to our Product webpage or contact us directly. We at RISE Power are ready to serve you.
XinChai Series Diesel Engine, 490
490 Diesel Engine for Generating Sets
Designed by XinChai with the technologies of Ricardo of UK and Austrian AVL company, the C490BD series diesel engine features high stability, reliability and high technology content. This kind of XinChai series diesel engine serves as excellent drive power for 15-20KW generating sets.
1. It is equipped with a direct injection combustion system, with fast and reliable starting, and low fuel consumption
2. Bosch's P series injectors are adopted for the fuel system of the C490 diesel engine. C490 diesel engine has low noise and meets the emission standard of "TierⅣ".
3. The XinChai series diesel engine has high reliability and high endurance, with some special technical process for some key parts.
4. With compact structure, easy installation and beautiful design, it is convenient for mounting by SAE connecting.
5. With our professional team and excellent service, necessary technical supports are ensured for our customers.
6. We provide high grade after-sales service and sufficient supply of spare parts for our customers, and you can thus feel secure in purchasing our products.
| Model | C490BD | C490BZD | |
| Cylinder number-cylinder bore× stroke(mm) | 4-90×105 | 4-90×105 | |
| Type | Direct injection, water cooled and four-stroke | ||
| Displacement(L) | 2.67 | 2.67 | |
| Compression ratio | 18.4:1 | 18.4:1 | |
| Rated output/ Rated speed(kw/r/min) | 21/1500 | 25/1800 | 21/1800 |
| Maximum specific fuel consumption at full load(g/kw·h) | ≤238 | ≤238 | |
| Engine idle speed(r/min) | ≤950 | 750±30 | |
| Maximum smoke at full load | ≤2.0 | ≤1.0 | |
| Exhaust temperature(℃) | ≤550 | ≤550 | |
| Net weight | ≤240 | ≤240 | |
| Machine oil consumption(g/kW·h) | ≤1.63 | ≤1.63 | |
| Emission level | National emission standards of GradeⅡ | Tier IV | |
As a major XinChai series diesel engine supplier in China, Guangdong RISE Power Equipment Inc. has received ISO9001:2000 certificate due to its operation in strict accordance with international standards. In addition to the XinChai series diesel engine, we also provide SDEC diesel engine, Perkins series diesel engine, and various generator set, including MAN generator set, MTU generator set, gas powered generator set, and medium frequency generator set, to name a few. With superior quality, reliable performance, safety and durability, our products are highly sought after by customers both at home and abroad. Our company is located in Guangzhou, where we have access to convenient air, sea and land transportation. This helps to lower our transportation cost but save shipping charges for our customers as well. If you are interested in our diesel engines or generator sets, please feel free to contact us. Staffs at RISE Power look forward to working with you.

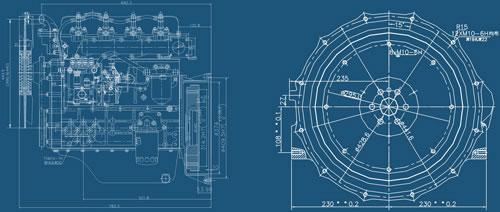

XinChai Series Diesel Engine, 498
498 Diesel Engine for Generating Sets
A498BD series diesel engine is a green engine designed by our company in view of the development trend of diesel engines and environmental requirements. This type of XinChai series diesel engine adopts advanced technologies such as using chrome steel cylinder liner, platform combustion chamber and P series injectors. In addition, the 498 diesel engine provides ideal auxiliary power for 25-30KW generating sets.
Main Features of XinChai Series Diesel Engine, 498
1. It makes use of chrome steel cylinder liner and ceramic piston rings to achieve high wearability.
2. Bosch's P series injectors are utilized for the fuel system of the XinChai series diesel engine, with stable performance. The A498BZD engine meets the requirement of American emission standard.
3. With optimal design, it achieves minimum BSFC, low fuel consumption and low costs.
4. With compact structure, easy installation and beautiful design, it is convenient for mounting by SAE connecting.
5. With our professional team and excellent service, necessary technical supports are ensured for our customers.
6. We provide high grade after-sales service and sufficient supply of spare parts for our customers, and you can thus feel secure in purchasing our products.
| Model | C498BD | C498BZD | |
| Cylinder number-cylinder bore× stroke(mm) | 4-98×105 | 4-9×105 | |
| Type | Direct injection, water cooled and four-stroke | ||
| Displacement (L) | 3.17 | 3.17 | |
| Compression ratio | 18.5:1 | 18.4:1 | |
| Rated output/ Rated speed(kw/r/min) | 28/1500 | 33/1800 | 28/1800 |
| Maximum specific fuel consumption at full load(g/kw·h) | ≤235 | ≤235 | |
| Engine idle speed(r/min) | ≤950 | 750±30 | |
| Maximum smoke at full load | ≤2.0 | ≤1.8 | |
| Exhaust temperature(℃) | ≤550 | ≤550 | |
| Net weight | ≤260 | ≤260 | |
| Machine oil consumption(g/kW·h) | ≤1.2 | ≤1.2 | |
| Emission level | National emission standards of GradeⅡ | Tier IV | |
Guangdong RISE Power Equipment Inc. is a XinChai series diesel engine supplier in China. Our company has received ISO9001:2000 certification due to our operation in rigid compliance with international standards. In addition to the XinChai series diesel engine, we also provide Perkins series diesel engine, Stamford alternator, and a variety of generator sets, such as VOLVO generator set, Caterpillar Olympian generator set, and Yanmar generator set, to name a few. With reliable quality and reasonable prices, our products are finding a good sale in the international markets. Located in Guangzhou, our company has easy access to complete infrastructure, developed trade and convenient air, sea and land transportation, which contribute to lowering our transportation cost and your shipping charges as well. If you are in need of high quality competitively priced diesel engines or generator sets, please feel free to contact us. We at RISE Power are happy to assist you.
XinChai Series Diesel Engine, 3N17D
Main Features of XinChai Series Diesel Engine, 3N17D
1. Compact structure, small size and light weight;
2. Strong power, low speed high torque;
3. Low fuel consumption, low acceleration smoke concentration, and good starting performance;
4. 3N17D generating set, in compliance with national off-road emission standard of GradeⅠ; the upgrading products, in accordance with the standard of EPA"Tier4".
| Type | In-line, water-cooled, four-stroke, direct-injection combustion chamber |
| Cylinder number-cylinder bore-stroke(mm) | 3-85-102 |
| Cylinder liner | Wet-type |
| Displacement (L) | 1.74 |
| Compression ratio | 18:1 |
| Rated output/ Rated speed(kw/r/min) | 13/1500 |
| Maximum specific fuel consumption at full load(g/kw·h) | ≤ 230 |
| Smoke (Bosch) | ≤ 3 |
| Emission level | National emission standards of GradeⅠ |
| Engine idle speed (r/min) | 650±10 |
| Size (mm) | 670×529×628 |
A leading XinChai series diesel engine supplier in China, Guangdong RISE Power Equipment Inc. has obtained the ISO certification due to its operation in strict compliance with international standards. In addition to the XinChai series diesel engine, we also provide customers with quality SDEC diesel engine, Leroy Somer alternator, and a range of generator sets, including Deutz generator set, Lister-Petter generator set, and DOOSAN DAEWOO generator set, to name a few. Featuring top quality, reliable performance, safety and long service life, our products are well received in the international markets. If you are interested in our diesel engines or generator sets, please feel free to contact us. We at RISE Power are ready to serve you.
XinChai Series Diesel Engine, 4K39D-4K43D
Application of XinChai Series Diesel Engine, 4K39D-4K43D
The XinChai series diesel engine, 4K39D-4K43D is mainly used to provide power for 25~35KW generating sets.
Main Features of XinChai Series Diesel Engine, 4K39D-4K43D
1. Compact structure, small size, light weight and strong power;
2. Direct injection toroidal combustion chamber, low fuel consumption, low smoke concentration and fast and easy starting;
3. Smooth running and small vibration;
4. In compliance with national emission standard of GradeⅠ
Technical Parameters of XinChai Series Diesel Engine, 4K39D-4K43D
| Type | In-line, water-cooled, four-stroke direct-injection combustion chamber | ||
| Cylinder number-cylinder bore-stroke(mm) | 4-102-118 | 4-105-118 | 4-108-118 |
| Displacement (L) | 3.857 | 4.087 | 4.324 |
| Compression ratio | 17.5: 1 | ||
| Rated power/Rated speed (kW-r/min) | 33/1500 | 36/1500 | 40/1500 |
| Maximum torque/speed (N·m/r/min) | / | / | / |
| Maximum specific fuel consumption at full load(g/kw·h) | ≤ 238 | ||
| Engine idle speed (r/min) | 730 | ||
| Size (mm) | 942.5×582×772 | ||
As an experienced XinChai series diesel engine supplier in China, Guangdong RISE Power has gained ISO9001:2000 certification due to its operation in strict accordance with international standards. Our products primarily include MAN generator set, MTU generator set, SDEC generator set, and accessories like Stamford alternator, XinChai series diesel engine, and more. With reliable quality and competitive prices, our products are highly praised by our global customers. Located in Guangzhou, our company has access to convenient transportation, which can effectively bring down your shipping charges. For more information about our products, please go to our Product webpage or directly contact us. We at RISE Power look forward to hearing from you.
