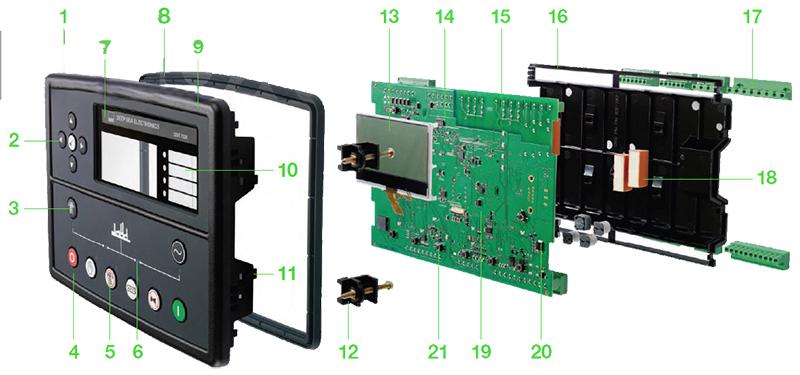

1. Robust case design
2. Four-key menu navigation
3. Breaker control buttons
4. Hard-wearing elastomer front
5. Durable membrane buttons
6. System status LEDs
7. Module insert label (customizable)
8. Module rubber gasket
9. Stylish curved design
10. Customer-configurable insert label

12. Strong fixing clips
13. Bright clear LCD display
14. ARM core processor
15. Single board technology for reduced vibration
16. Durable module back with wiring fixing points
17. Easy-wire terminal blocks
18. High-powered FETs
19. 95% surface mount technology
20. High component level for increasedreliability
21. Low-profile switch technology

RISE Power™ GENERATOR SETS OFFER A COMPLETE LINE OF AUTOMATIC CONTROL SYSTEMS

● Auto Mains Failure
-Control with AMF module
-Static battery charger
-Emergency stop push button

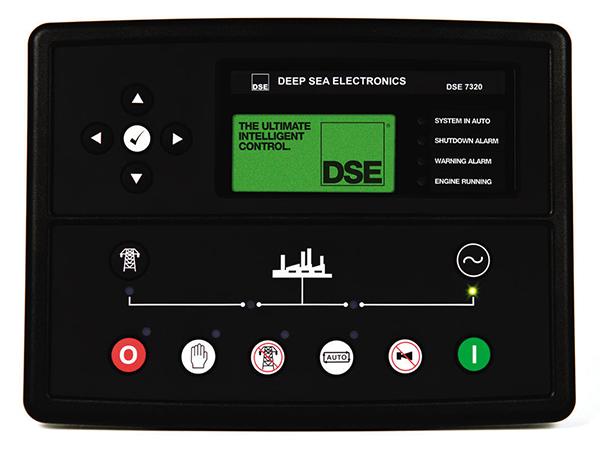

● DSE7320 Features
-Monitor a mains supply and starts/stops a standby genset
-Micro-processor based design
-Automatic control of mains and generator contactors
-Monitors engine performance and AC power output
-LED alarm indication
-Front panel configuration of timers and alarm trip points
-Easy push button control
STOP/RESET- MANUAL-TEST-AUTO-MUTE ALARM-START

● Metering via LED Display
-Generator volts (L-L/L-N)
-Engine oil pressure (PSl-Bar)
-Generator ampere (L1, L2, L3) -Engine temperature (oC&oF)
-Generator frequency (Hz) -Plant battery volts
-Engine hours run -Mains volts (Ph-Ph/Ph-N)
-Generator kvA, kWh -Generator kW as% of rated kW setting
-Generator Cos (φ)

● Alarms
-Over and under speed -Low and high battery voltage.
-Start and stop failure -Charge failure
-Over current -Under/over generator voltage
-Low oil pressure -Emergency stop
-High engine temperature -kW overload
-Unbalanced load -lndependent earth fault trip
