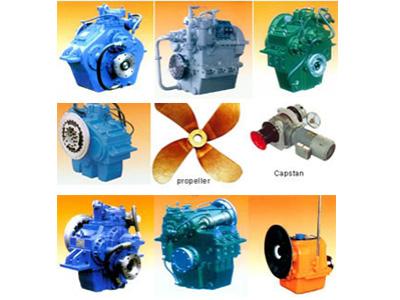

Marine Accessories

Introduction of Marine Accessories
1. RISEPower marine gearbox series products are designed and manufactured to standards and criterions of international shipping classification societies
2. Our marine accessories are very popular in international markets.

Application of Marine Accessories
They are widely applicable to form of power units for coastal and oceanic fishery ships, traffic ferry, pleasure-boat, special type engineering boat.

Main Specifications of Marine Accessories
Marine Gearbox, 600 - 4000rpm
Model Speed Ratio Rate
(HP/rpm) 		Engine
Speed
(rpm) 		Overall
Dimension
L*W*H
(mm) 		Net
Weight
(kg)
06 2.52 3.05 3.5 0.0044 1000~2100 350*316*482 58
16A 2.07 2.48 2.95 3.35 3.383 0.012 1000~2000 422*325*563 84
MD020 1.56 1.88 2.63 0.009~0.012 4000 281*230*221 15
MA100 1.6 2.0 2.55 3.11 3.59 3.88 0.006~0.009 1500~3000 236*390*420 75
MA125 2.03 2.46 3.04 3.57 4.05 4.39 4.7 0.011~0.02 1500~3000 291*454*485 115
MA142 1.97 2.52 3.03 3.54 3.95 4.5 5.06 5.47 0.013~0.03 1500~2500 308*520* 140
40A 2.07 2.96 3.44 0.025~0.03 750~2000 414*610*620 225
MB170 1.97 2.52 3.03 3.54 3.96 4.50 5.06 5.47 5.88 0.027~0.039 1000~2500 485*610*656 240
HCU65 2.045 2.50 3.068 3.427 0.045 1000~2200 504*600*808 260
HC65 1.53 2.03 2.50 2.96 0.044~0.048 1000~2500 311*460*544 130
120B 2.03 2.81 3.73 0.044~0.088 750~1800 605*744*770 400
120C 1.48 1.94 2.45 2.96 3.35 0.08~0.1 1000~2500 352*694*650 225
MV100 1.23 1.62 2.07 2.52 2.87 0.08~0.1 1500~3000 390*630*580 220
HCV120 1.509 2.016 2.524 0.076~0.01 1500~2500 502*600*847 300
135 2.03 2.59 3.04 3.62 4.11 4.65 5.06 5.47 5.81 0.070~0.10 1000~2000 578*744*830 470
MB242 3.04 3.52 3.95 4.53 5.12 5.56 5.88 0.074~0.013 1000~2500 442*744*763 385
HC138 2.52 3.0 3.57 4.05 4.45 0.11 1000~2500 520*792*760 360
HC200 1.48 2.0 2.28 0.147 1000~2200 430*744*708 280
MB270A 4.05 4.53 5.12 5.50 5.95 6.39 6.82 0.088~0.147 1000~2500 594*810*868 675
HCV230 1.485 1.956 2.483 0.146~0.184 1000~2200 568*620*1020 450
HCQ300 1.06 1.46 2.05 2.38 0.235~0.250 1000~2300 533*681*676 360
300 2.04 2.54 3.0 3.53 4.1 4.61 4.94 5.44 0.125~0.257 1000~2300 638*870*864 740
D300 4.0 4.48 5.05 5.52 5.90 6.56 7.06 7.63 0.125~0.257 1000~2300 638*920*1040 880
T300 6.03 6.65 7.04 7.54 8.02 0.221~0.243 1000~2300 640*920*1110 1120
HCV400 1.388 2.0 0.274~0.30 1000~1800 780*740*1192 650
HC400 2.04 2.50 3.0 3.42 4.06 0.279~0.331 1000~1800 641*890*890 820
HCD400A 3.96 4.33 4.43 4.70 5.0 5.53 5.89 0.272~0.331 1000~1800 641*950*988 1100
HCT400A 6.096 6.49 6.93 7.42 7.95 8.40 9.0 9.47 0.243~0.331 1000~2100 784*992*1130 1450
HCT400A-1 8.15 8.69 9.27 9.94 10.60 11.46 12 0.262~0.331 1000~2100 869*1100*1275 1500
HC600A 2.0 2.48 3.0 3.58 3.89 0.40~0.48 1000~2100 745*1094*1126 1300
HCD600A 4.18 4.43 4.70 5.0 5.44 5.71 0.40~0.48 1000~2100 745*1094*1271 1550
HCT600A 6.06 6.49 6.97 7.51 8.04 8.66 9.35 0.28~0.44 1000~2100 805*1094*1271 1600
HCT600A-1 8.23 8.82 9.47 10.8 11.65 12.57 0.331~0.441 1000~2100 878*1224*1346 1700
750B 1.49 1.97 2.48 2.92 0.55 600~1200 1117*850*1170 1600
CHT800 5.57 5.68 5.93 6.43 6.86 7.33 7.84 0.515~0.625 800~1800 1056*1280*1425 2000
900 1.46 2.04 2.47 3.0 3.60 4.08 4.63 4.95 0.40~0.66 600~1600 1115*850*1310 1600
