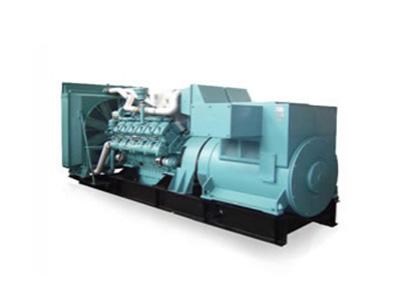

Deutz Diesel Engine Powered 200-1728kW Deutz Diesel Generator
The 200-1728kW Deutz diesel generator powered by HND Deutz diesel engine, is equipped with famous brushless excitation alternators of Marathon and Stamford, and intelligent control panels.
With automatic protective device, Deutz diesel generator can automatically control and regulate the water temperature, oil temperature, oil pressure, and speed. It has many advantages such as automatic speed regulation, automatic voltage regulation, good dynamic performance, stable fluctuation of voltage, high efficiency, high reliability, long service life, and more. These generators can be combined as a power station group with automatic start system in accordance with customer's requirements.
DEUTZ was founded 1864 in Cologne, Germany. Now it is the world's oldest engine manufacturer. With annual sales of about Euro1,200 million, DEUTZ is one of the leading independent suppliers of diesel and gas engines in the world. HND with DEUTZ technology have 234, 236, 604 and 620 series licensed by MWM technology engines. The genset output cover from 200kW to 1700kW and with 50 and 60Hz.
HND Deutz Diesel Generator 50Hz 230V/ 400V| Model | Power (kw/kVA) | Engine Model | Alternator Model | Dimension | Weight | |
| Prime | Standby | Open Type | Open Type | |||
| RDL200 | 200/250 | 220/275 | TBD234V6A | LSA46.2L6 | 2600×1150×1650 | 2100 |
| RDL220 | 220/275 | 242/303 | TBD234V6B | LSA46.2L9 | 2600×1150×1650 | 2100 |
| RDL280 | 280/350 | 308/385 | TBD234V8A | LSA47.2VS2 | 2600×1150×1650 | 2100 |
| RDL300 | 300/375 | 330/413 | TBD234V8B | LSA47.2VS2 | 2750×1150×1650 | 3100 |
| RDL350 | 350/438 | 385/481 | TBD236V8 | LSA47.2S5 | 2900×1150×1750 | 3500 |
| RDL440 | 440/550 | 484/605 | TBD234V12 | LSA47.2M8 | 3600×1300×2250 | 4800 |
| RDL500 | 500/625 | 550/688 | TBD604BL6A | LSA49.1S4 | 3950×1530×2210 | 4800 |
| RDL550 | 550/688 | 605/756 | TBD604BL6B | LSA49.1M6 | 3950×1530×2210 | 4800 |
| RDL640 | 640/800 | 704/880 | TBD620L6 | LSA49.1M75 | 4950×1540×2230 | 5000 |
| RDL800 | 800/1000 | 880/1100 | TBD620V8 | LSA50.2S4 | 4500×1550×2500 | 6800 |
| RDL880 | 880/1100 | 968/1210 | TBD620V8 | LSA50.2M6 | 4500×1550×2500 | 6800 |
| RDL1080 | 1080/1350 | 1188/1485 | TBD620V12 | LSA50.2L7 | 4900×2050×2525 | 9000 |
| RDL1312 | 1312/1640 | 1443/1804 | TBD620V12 | LSA50.1VL10 | 5000×2050×2525 | 10500 |
| RDL1600 | 1600/2000 | 1760/2200 | TBD620V16 | LSA51.2M60 | 5500×1600×2500 | 11500 |
| Model | Power (kw/kVA) | Engine Model | Alternator Model | Dimension | Weight | |
| Prime | Standby | Open Type | Open Type | |||
| RDL204-60 | 204/255 | 224/280 | TBD234V6A | LSA46.2L6 | 2600×1150×1650 | 2100 |
| RDL240-60 | 240/300 | 264/330 | TBD234V6B | LSA46.2L9 | 2600×1150×1650 | 2100 |
| RDL273-60 | 273/341 | 300/375 | TBD234V8A | LSA46.2VL12 | 2750×1150×1650 | 3100 |
| RDL312-60 | 312/390 | 343.2/429 | TBD236V8 | LSA47.2VS2 | 2900×1150×1750 | 3500 |
| RDL334-60 | 334/417 | 367/459 | TBD234V8B | LSA47.2VS2 | 2750×1150×1650 | 3100 |
| RDL408-60 | 408/510 | 449/561 | TBD234V12 | LSA47.2S4 | 3600×1300×2250 | 4800 |
| RDL704-60 | 704/880 | 774/968 | TBD620L6 | LSA49.1M75 | 4950×1540×2230 | 5000 |
| RDL964-60 | 964/1080 | 1060/1325 | TBD620V8 | LSA50.2S4 | 4500×1550×2500 | 6800 |
| RDL1300-60 | 1300/1625 | 1430/1787 | TBD620V12 | LSA50.2L8 | 5000×2050×2525 | 10500 |
| RDL1728-60 | 1728/2160 | 1900/2376 | TBD620V16 | LSA51.2M60 | 5500×1600×2500 | 11500 |
As a professional Deutz diesel generator and supplier in China, Guangdong Rise Power Equipment Inc. is involved in supplying series of generators for over a decade. It has received the ISO9001:2000 certification due to its operation in strict accordance with international standards. In addition to the Deutz generator set, we also provide Perkins generator, MAN generator, Caterpillar Olympian generator, Yanmar generator, XinChai generator, and related accessories like alternators, diesel engines, and more. With superior quality, reliable performance, safety and durability, our products are fully recognized and highly praised by global customers. We welcome global buyers to contact us and try our products. Staffs at RISE Power look forward to working with you.
