Cummins Engine Powered 16 - 1825kW Cummins Generator

Diesel Powered Generating Sets (50/60Hz, 380~480V, 3-Phase, 0.8PF)
Generating Sets Powered by Cummins Engine
This RISE Power Cummins series commercial generator set is a fully-integrated power generation system, providing optimum performance, reliability and versatility for stationary standby and prime applications.

Standard Structure of Cummins Generator
1. Engine: Cummins heavy duty 4-stroke/after-cooler/turbocharged diesel engine.
2. Alternator: Marathon alternator.
3. Control System: UK Deepsea Intelligent digital control system.
4. Cooling System: Closed water cooling, ambient temperature 50℃.
5. Start up System: 24V DC startup/spring startup.
6. Structural Steel Skid Base: Robust skid base supports the engine, alternator and radiator. (base fuel tank option)
7. Accessories Parts: Industrial muffler, storage battery and battery wire, battery charger (built-in), MCCB breaker (built-in), UK Deepsea control system (built-in), tools and spare parts box, shockproof rubber pads, manual and document.

50Hz Power Range (20 - 2250kVA) Powered by Cummins
Reliable, Durable, Efficient

Model Prime Power Standby Power Engine Cylinders Displacement (L) Fuel Consumption (L/h) Lube Capacity(L) Open Version Soundproofed Version
kVA kW kVA kW L*W*H(mm) Weight (kg) L*W*H(mm) Weight (kg)
RCM16 20 16 23 18 4B3.9-G2 4L 3.9 < 4.3 11 1500*650*1150 780 2350*1100*1520 1300
RCM20 25 20 28 22 4B3.9-G2 4L 3.9 < 5.2 11 1500*650*1150 800 2350*1100*1520 1320
RCM24 30 24 33 26 4BT3.9-G2 4L 3.9 < 7.0 11 1800*730*1250 820 2350*1100*1520 1340
RCM30 38 30 41 33 4BT3.9-G2 4L 3.9 < 7.0 11 1800*730*1250 830 2350*1100*1520 1350
RCM32 40 32 45 36 4BT3.9-G2 4L 3.9 < 8.0 11 1820*730*1250 845 2350*1100*1520 1365
RCM40 50 40 55 44 4BTA3.9-G2 4L 3.9 < 10.0 11 1900*730*1300 930 2350*1100*1520 1450
RCM45 56 45 63 50 4BTA3.9-G2 4L 3.9 < 12.0 11 1900*730*1300 955 2350*1100*1520 1475
RCM50 63 50 69 55 4BTA3.9-G11 4L 3.9 < 13.0 11 1900*785*1300 968 2350*1100*1520 1650
RCM58 73 58 80 64 4BTA3.9-G11 4L 3.9 < 17.6 11 1900*785*1300 990 2350*1100*1520 1700
RCM63 79 63 86 69 4BTA3.9-G11 4L 3.9 < 17.6 11 1900*785*1300 1020 2350*1100*1520 1800
RCM70 88 70 96 77 6BT5.9-G2 6L 5.9 < 19.5 16 2200*830*1280 1250 3200*1150*1750 2040
RCM75 94 75 103 82 6BT5.9-G2 6L 5.9 < 21.2 16 2200*830*1280 1260 3200*1150*1750 2050
RCM80 100 80 110 88 6BT5.9-G2 6L 5.9 < 22.9 16 2200*830*1280 1272 3200*1150*1750 2062
RCM90 113 90 124 99 6BTA5.9-G2 6L 5.9 < 25.5 16 2200*830*1325 1295 3200*1150*1750 2130
RCM104 130 104 144 115 6BTAA5.9-G2 6L 5.9 < 29.5 16 2360*830*1335 1380 3200*1150*1750 2167
RCM120-1 150 120 165 132 6BTAA5.9-G12 6L 5.9 < 34.8 16 2360*830*1335 1420 3200*1150*1750 2430
RCM120 150 120 165 132 6CTA8.3-G2 6L 8.3 < 35.7 24 2360*850*1366 1780 3600*1330*2010 3038
RCM140 175 140 193 193 6CTA8.3-G2 6L 8.3 < 41.2 24 2360*850*1366 1830 3600*1330*2010 3100
RCM150 188 150 206 165 6CTA8.3-G2 6L 8.3 < 42 24 2360*850*1366 1860 3600*1330*2010 3130
RCM160 200 160 220 176 6CTAA8.3-G2 6L 8.3 < 43.3 24 2400*980*1460 1870 3600*1330*2010 3060
RCM180 225 180 248 198 6LTAA8.9-G2 6L 8.9 < 47.8 24 2540*1020*1530 1960 3600*1330*2040 3380
RCM200 250 200 275 220 6LTAA8.9-G2 6L 8.9 < 53 24 2540*1020*1530 1985 3600*1330*2040 3405
RCM180-1 225 180 250 200 NT855-GA 6L 14 < 47.5 39 3000*1050*1750 2450 4300*1480*2140 4200
RCM200-1 250 200 275 220 NT855-GA 6L 14 < 52.3 39 3000*1050*1750 2480 4300*1480*2140 4250
RCM220 275 220 303 242 NTA855-G1A 6L 14 < 60 39 3000*1050*1750 2680 4300*1480*2140 4450
RCM230 288 230 316 253 MTAA11-G3 6L 11 < 61 39 3000*1140*1600 2350 4500*1580*2100 4800
RCM240 300 240 330 264 MTAA11-G3 6L 11 < 62 39 3000*1140*1600 2380 4500*1580*2100 4820
RCM250 313 250 344 275 NTA855-G1B 6L 14 < 68.3 39 3000*1050*1750 2800 4300*1480*2140 4600
RCM250-1 313 250 344 275 MTAA11-G3 6L 11 < 63 39 3000*1140*1600 2400 4500*1580*2100 4850
RCM260 325 260 358 286 NTA855-G2A 6L 14 < 69 39 3000*1060*1760 2920 4300*1480*2140 4710
RCM270 338 270 371 297 NTA855-G2A 6L 14 < 70 39 3000*1060*1760 2950 4300*1480*2140 4750
RCM275 344 275 375 300 NTA855-G2A 6L 14 < 72 39 3000*1060*1760 3000 4300*1480*2140 4800
RCM300 375 300 413 330 NTAA855-G7 6L 14 < 83 39 3250*1120*1720 2850 4500*1580*2100 5300
RCM360S N/A N/A 450 360 NTAA855-G7A 6L 14 < 87 39 3250*1120*1720 2880 4500*1580*2100 5330
RCM350 438 350 481 385 KTA19-G3 6L 18.9 < 95 50 3350*1280*1930 3700 4800*1683*2200 6400
RCM360 450 360 500 400 KTA19-G3 6L 18.9 < 95.1 50 3350*1280*1930 3800 4800*1683*2200 6500
RCM400 500 400 550 440 KTA19-G3A 6L 18.9 < 94.6 50 3350*1280*1930 3940 4800*1683*2200 6640
RCM400-1 500 400 550 440 QSZ13-G3 6L 14 < 96.5 45 3250*1350*2100 3750 5000*1980*2370 6510
RCM420 525 420 631 505 KTAA19-G5 6L 18.9 < 113 50 3525*1550*2030 4010 5000*1980*2370 6770
RCM520S N/A N/A 650 520 KTA19-G8 6L 18.9 < 125 50 3350*1280*1930 4150 4800*1683*2200 6800
RCM460 575 460 650 520 KTAA19-G6 6L 18.9 < 118.5 50 3525*1550*2030 4200 5000*1980*2370 6850
RCM550S N/A N/A 688 550 KTAA19-G6A 6L 18.9 < 128 50 3525*1550*2030 4220 5000*1980*2370 6870
RCM560 700 560 770 616 KTA38-G2 12V 37.8 < 165 135 4200*1800*2380 6800 6058*2438*2896 11800
RCM600 750 600 825 660 KTA38-G2 12V 37.8 < 167 135 4200*1800*2380 7000 6058*2438*2896 12000
RCM640 800 640 888 710 KTA38-G2B 12V 37.8 < 169 135 4200*1800*2380 7150 6058*2438*2896 12160
RCM700 875 700 963 770 KTA38-G2A 12V 37.8 < 195 135 4200*1800*2380 7170 6058*2438*2896 12190
RCM728 900 728 1000 800 KTA38-G2A 12V 37.8 < 196 135 4200*1800*2380 7210 6058*2438*2896 12250
RCM800 1000 800 1100 880 KTA38-G5 12V 37.8 < 209 135 4200*1810*2250 7310 6058*2438*2896 12370
RCM1000S N/A N/A 1250 1000 KTA38-G9 12V 37.8 < 210 135 4350*2090*2180 8100 6058*2438*2896 13417
RCM1000 1250 1000 1375 1100 KTA50-G3 16V 50 < 254 177 5000*1850*2343 9038 12192*2438*2896 16850
RCM1100 1375 1100 1650 1320 KTA50-G8 16V 50 < 289 204 5200*2260*2510 9520 12192*2438*2896 18320
RCM1180 1475 1180 1650 1320 KTA50-GS8 16V 50 < 309 204 5200*2260*2510 9900 12192*2438*2896 18500
RCM1232 1540 1232 1700 1360 QSK50-G4 16V 50 < 326 235 4780*2065*2230 9750 12192*2438*2896 18800
RCM1320 1650 1320 1815 1452 QSK50-G7 16V 50 < 349 235 4780*2065*2230 9900 12192*2438*2896 20600
RCM1500 1875 1500 2063 1650 QSK60-G3 16V 60 < 397 280 5900*2180*2600 14300 12192*2438*2896 21000
RCM1636 2045 1636 2250 1800 QSK60-G4 16V 60 < 433 280 6180*2285*2540 15500 12192*2438*2896 21100
RCM1800 2250 1800 2500 2000 QSK60-G21 16V 60 < 455 280 6230*2285*2540 15600 12192*2438*2896 22000

60Hz Power Range (22 - 2281kVA) Powered by Cummins
Reliable, Durable, Efficient

Model Prime Power Standby Power Engine Cylinders Displacement (L) Fuel Consumption(L/h) Lube Capacity(L) Open Version Soundproofed Version
kVA kW kVA kW L*W*H(mm) Weight (kg) L*W*H(mm) Weight (kg)
RCM18 22 18 24 19 4B3.9-G2 4L 3.9 < 8.6 11 1500*650*1150 750 2350*1100*1520 1350
RCM24 30 24 33 27 4B3.9-G2 4L 3.9 < 8.6 11 1500*650*1150 780 2350*1100*1520 1380
RCM30 38 30 41 33 4BT3.9-G2 4L 3.9 < 10 11 1800*730*1250 810 2350*1100*1520 1410
RCM34 43 34 46 37 4BT3.9-G2 4L 3.9 < 7.0 11 1800*730*1250 810 2350*1100*1520 1410
RCM44 55 44 60 48 4BTA3.9-G2 4L 3.9 < 15.4 11 1900*730*1300 900 2350*1100*1520 1540
RCM50 63 50 69 55 4BTA3.9-G2 4L 3.9 < 15.4 11 1900*730*1300 900 2350*1100*1520 1540
RCM60 75 60 83 66 4BTA3.9-G2 4L 3.9 < 19.4 11 1900*730*1300 900 2350*1100*1520 1540
RCM72 90 72 100 80 4BTA3.9-G11 4L 3.9 < 20.1 11 1900*785*1300 1020 2350*1100*1520 1700
RCM80 100 80 110 88 6BT5.9-G2 6L 5.9 < 23.9 16 2200*830*1280 1200 3200*1150*1750 1990
RCM90 113 90 125 100 6BT5.9-G2 6L 5.9 < 26 16 2200*830*1280 1250 3200*1150*1750 2040
RCM105 131 105 145 116 6BTA5.9-G2 6L 5.9 < 29.7 16 2200*830*1325 1290 3200*1150*1750 2080
RCM120 150 120 165 132 6BTAA5.9-G2 6L 5.9 < 34 16 2360*830*1335 1350 3200*1150*1750 2140
RCM130 163 130 179 143 6BTAA5.9-G12 6L 5.9 < 37.8 16 2360*830*1335 1420 3200*1150*1750 2430
RCM140 175 140 193 154 6CTA8.3-G2 6L 8.3 < 39.9 24 2360*850*1366 1750 3600*1330*2010 3050
RCM160 200 160 220 176 6CTA8.3-G2 6L 8.3 < 44 24 2360*850*1366 1760 3600*1330*2010 3060
RCM175 219 175 240 192 6CTAA8.3-G2 6L 8.3 < 49 24 2400*980*1460 1800 3600*1330*2010 3100
RCM200 250 200 275 220 6LTAA8.9-G2 6L 8.9 < 54 24 2540*1020*1530 1940 3600*1330*2040 3240
RCM236 295 236 325 260 6LTAA8.9-G3 6L 8.9 < 62 28 2540*1020*1530 1950 3600*1330*2040 3250
RCM220S N/A N/A 275 220 NT855-GA 6L 14 < 60.4 39 3000*1050*1750 2480 4300*1480*2140 4250
RCM256 320 256 350 280 NTA855-G1 6L 14 < 70.1 39 3000*1050*1750 2840 4300*1480*2140 4470
RCM275 344 275 375 300 NTA855-G1B 6L 14 < 70.5 39 3000*1050*1750 2870 4300*1480*2140 4500
RCM320 400 320 440 352 NTA855-G3 6L 14 < 85.1 39 3000*1050*1750 2940 4300*1480*2140 4520
RCM350 438 350 481 385 KTA19-G2 6L 18.9 < 95.8 50 3350*1280*1930 3625 4800*1683*2200 6400
RCM400 500 400 550 440 KTA19-G3 6L 18.9 < 101 50 3350*1280*1930 3700 4800*1683*2200 6475
RCM450 563 450 625 500 KTA19-G3A 6L 18.9 < 115 50 3350*1280*1930 3870 4800*1683*2200 6600
RCM470 588 470 688 550 KTAA19-G5 6L 18.9 < 134 50 3525*1550*2030 3950 5000*1980*2370 6720
RCM600S N/A N/A 750 600 KTAA19-G6A 6L 18.9 < 142 50 3525*1550*2030 4100 5000*1980*2370 6800
RCM620 775 620 850 680 KT38-G 12V 37.8 < 147.4 135 4200*1800*2380 6500 6058*2438*2896 11650
RCM725 906 725 1000 800 KTA38-G2 12V 37.8 < 195 135 4200*1800*2380 7000 6058*2438*2896 12150
RCM750 938 750 1038 830 KTA38-G2B 12V 37.8 < 197 135 4200*1800*2380 7100 6058*2438*2896 12250
RCM800 1000 800 1100 880 KTA38-G2A 12V 37.8 < 210 135 4200*1800*2380 7170 6058*2438*2896 12320
RCM900 1125 900 1250 1000 KTA38-G4 12V 37.8 < 230 135 4200*1810*2250 7280 6058*2438*2896 13150
RCM1100S N/A N/A 1375 1100 KTA38-G9 12V 37.8 < 235 135 4350*2090*2180 8000 6058*2438*2896 13870
RCM1100 1375 1100 1575 1260 KTA50-G3 16V 50 < 281 177 5000*1850*2343 9150 12192*2438*2896 17000
RCM1260 1575 1260 1875 1500 KTA50-G9 16V 50 < 313 204 5200*2260*2510 9560 12192*2438*2896 17550
RCM1365 1706 1365 1875 1500 QSK50-G4 16V 50 < 360 235 4780*2065*2230 9750 12192*2438*2896 18300
RCM1825 2281 1825 2500 2000 QSK60-G6 16V 60 < 481 280 6180*2285*2540 15500 12192*2438*2896 22000

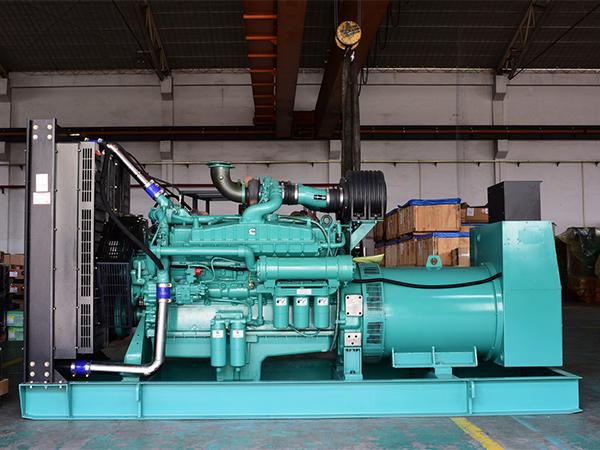

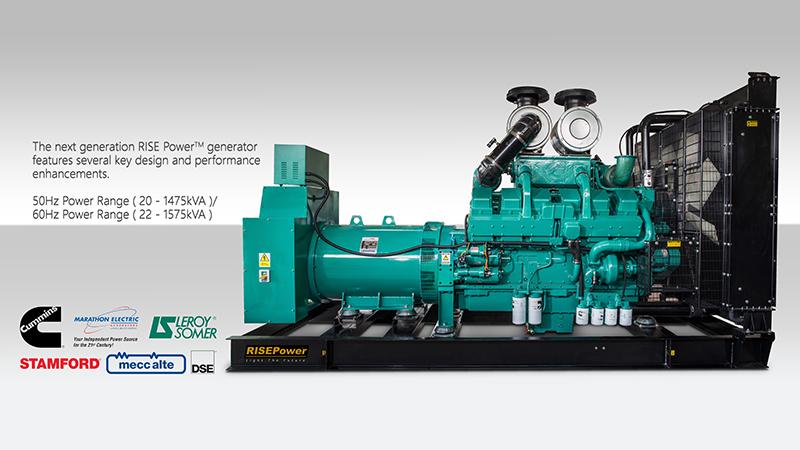

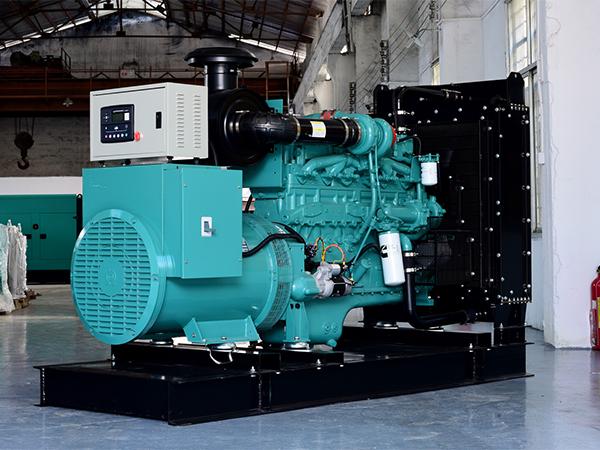

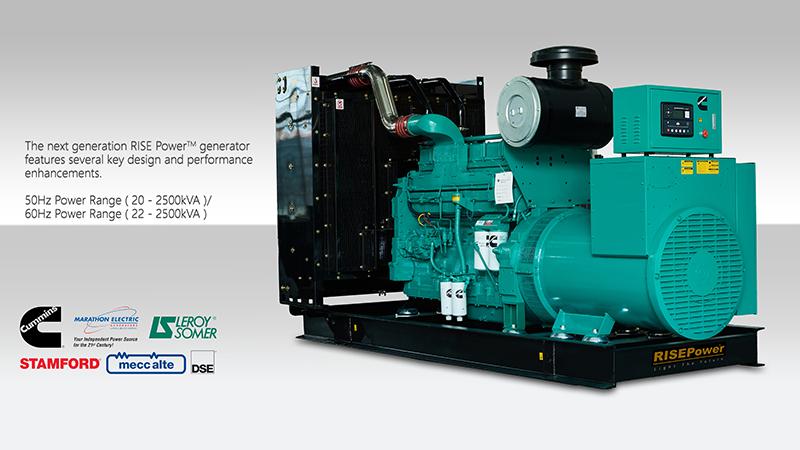

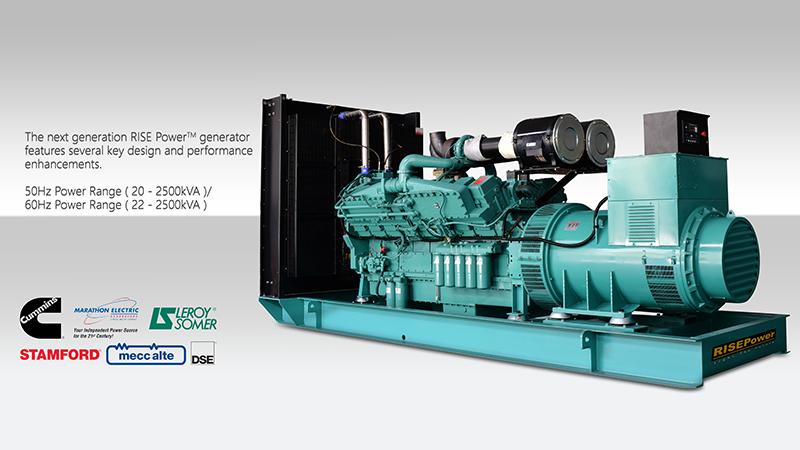

Gallery

Features of Cummins Generator
1. 100% tested to fully conform to GB/T2820-2009, ISO8528.
2. Engine is developed, designed and manufactured by Cummins, offering a best performance and efficiency.
3. Alternator is manufactured by Marathon with world latest leading technology.
4. Alternator exciter system enables the generator set to handle any frequency decrease in case of transient loading.
5. The low reactant design of the alternator enables non-linear wave distortion to be minimized, also offering satisfactory startup capability.
6. The PT fuel system developed by Cummins operates stably with full combustion; being highly efficient with good emissions.
7. UK DeepSea is one of the world’s top manufacturers of generator control, auto transfer switch and battery charger equipment.
8. DSEGenset® series control module is an intelligent range of control solutions and accessories suitable for generator, engine only and lighting tower applications. Each product is expertly designed to provide features and benefits that enhance customer applications.

Performance of Cummins Generator
1. 230/400VAC, 50Hz, 0.8PF(lagging) 3-phase 4-wire output
2. Voltage regulating range: >10%
3. Frequency regulating range: 0-5%
4. Stable state voltage regulation: 1%
5. Transient state voltage regulation: (-15%, +20%)
6. Stable state frequency regulation: < ±0.25%
7. Transient frequency variation: < 9%
8. Voltage distortion factor: < 5%
9. Voltage recovery time: (±3%) < 1S

Protective Function of Cummins Generator
1. High temperature alarm and shutdown
2. Low oil pressure alarm and shutdown
3. Over speed alarm and shutdown
4. Over current protection
5. Over voltage protection
6. Overpower protection

Options of Cummins Generator
1. Diesel oil, Coolant Heater
2. Diesel Tank for Daily Use
3. Automatic Transfer Switches
4. Parallel Control System
5. Sound Proof Canopy
6. Trailer Mounted Genset

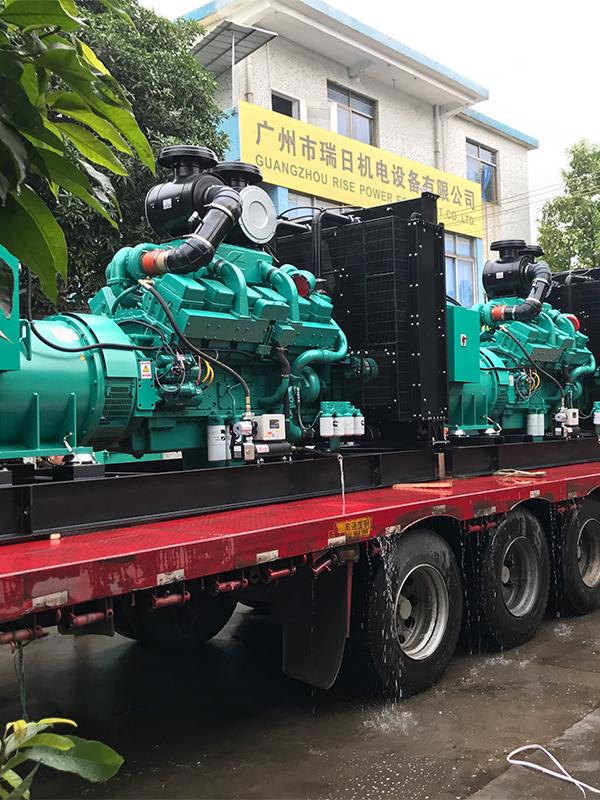

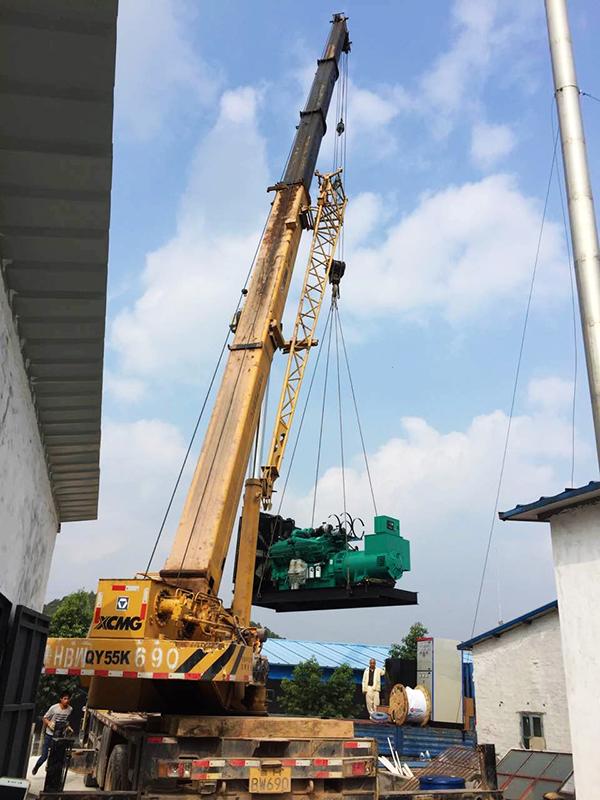

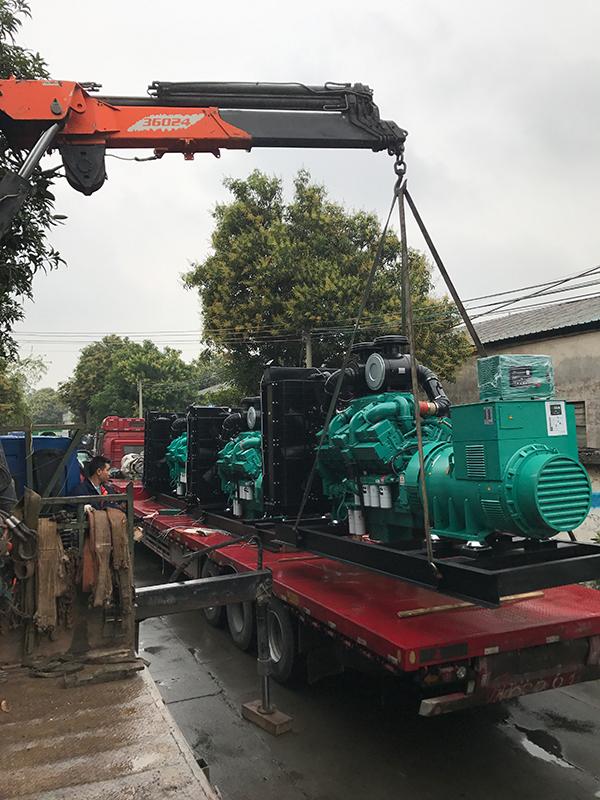

Transport
