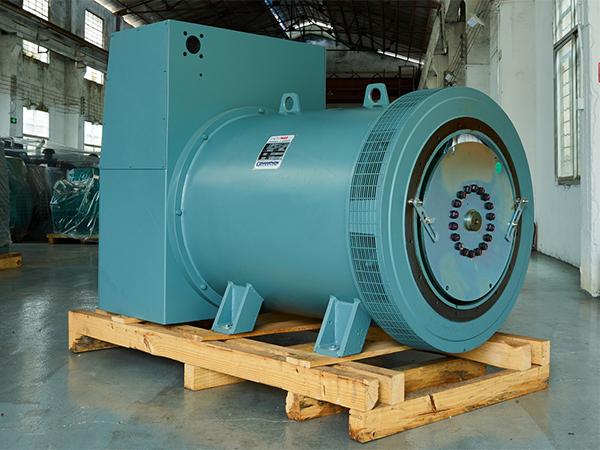

Marathon Alternator 438—2250kVA

Marathon Alternator 438-2250kVA

Product Description
A proven top performer in every respect the MAGNAMAXDVR® generator is a result of Marathon Electric's fifty years of generator experience and an intensive product development program using cutting edge technology.

Inherent to the MAGNAMAXDVR® design is exceptional transient performance. Meeting the demand of today's challenging market by offering remarkable performance and supporting a variety of non-linear loads. A load such as a UPS system or variable speed drives. The MAGNAMAXDVR® provides unprecedented voltage regulation in the presence of the harmonic voltage distortion caused by this type of load while the low reactance of the design minimizes the distortion.

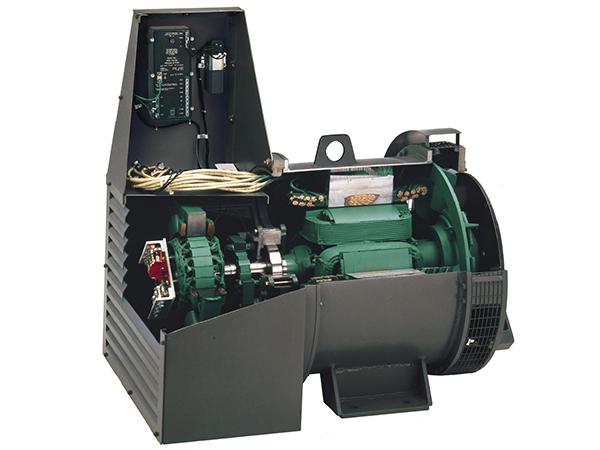

Constructed for extended life by utilizing Marathon's exclusive unirotor construction, UL recognized class H insulation system, and long life bearings.

The MAGNAMAXDVR® design can by incorporated in equipment certified to UL 2200 and is the ideal generator for voltage critical applications such as:

● Telecommunication Networks
● Hospitals
● Computer Centers
● Commercial Buildings
● Airports

Product Features
● 4 pole units available are 50 / 60 hz.
● Engine adapters available from SAE 3 to SAE 00 with coupling discs from SAE 8 to SAE 21, Special adapters and couplings are available.
● IP-22 and IP-23 protection available from stock.
● Stock units are twelve lead and re-connectable to the voltage you require and are available to 6600 volts.
● Generators are designed for easy paralleling with utilities or with other generators. All units feature 2/3 pitch and low harmonics and are supplied with a PMG to provide isolation of the voltage regulators power from the load induced distortion.
● A Class H insulation system that is recognized under UL1446 and is suitable for submission to UL2200 application approval.
● Large Conduit Box provides ample space for easy connections and allows load line entry from all directions.

Marathon Alternator 50/60Hz, 200V/400V, 438kVA - 2750kVA
Alternator Model Prime Power Voltage (V) Rated Current (A) Frequency (Hz)
kW kVA
MX-350-4 350 438 200/400V 632 50Hz
MX-400-4 400 500 200/400V 722 50Hz
MX-480-4 480 600 200/400V 866 50Hz
MX-500-4 500 625 200/400V 903 50Hz
MX-560-4 560 700 200/400V 1011 50Hz
MX-600-4 600 750 200/400V 1083 50Hz
MX-630-4 630 788 200/400V 1137 50Hz
MX-700-4 700 875 200/400V 1264 50Hz
MX-750-4 750 938 200/400V 1354 50Hz
MX-850-4 850 1063 200/400V 1534 50Hz
MX-1030-4 1030 1288 200/400V 1859 50Hz
MX-1240-4 1240 1550 200/400V 2238 50Hz
MX-1350-4 1350 1688 200/400V 2437 50Hz
MX-1540-4 1540 1925 200/400V 2780 50Hz
MX-1800-4 1800 2250 200/400V 3249 50Hz
MXL-2000-4 2000 2500 200/400V 3600 50Hz
MXL-2200-4 2200 2750 200/400V 3960 50Hz
